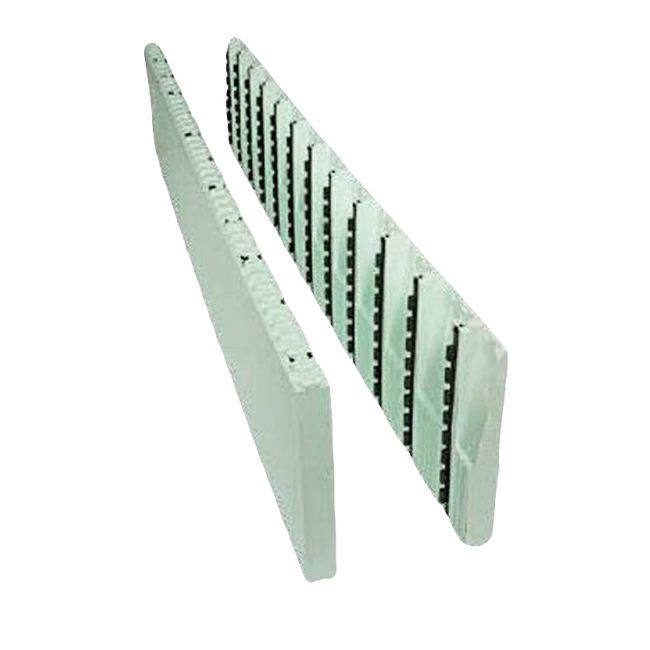

Taper Top Form Unit - Unassembled - Price Per Panel

Taper Top Form Units unassembled webs are sold seperately.

Package includes 3 Taper Top Panels and 3 Standard Panels @ 1.11 m² each piece. See attachments for dimension details and visit http://www.nudura.com/training/installation-videos for full installation details and videos.

Snap shot useful info

• Weight per package: 17.24 kg
• Area per piece: 1.11 m²
• Dimensions per package: 2.54m x 0.48m x 0.46m
• Pieces in a 40'HC: 384
• Packages in a 40'HC: 128

Volume (m³) of concrete required per piece. (Check with your engineer for the grade of concrete required for your project.)

• Core Size 100 mm: = 0.139 m³
• Core Size 150 mm: = 0.196 m³
• Core Size 200 mm: = 0.252 m³
• Core Size 250 mm: = 0.309 m³
• Core Size 300 mm: = 0.365 m³

Reinforcement required

• NUDURA have developed reinforcement tables based on European and North American code you can refer to these as guidance but always comply with your local code.
