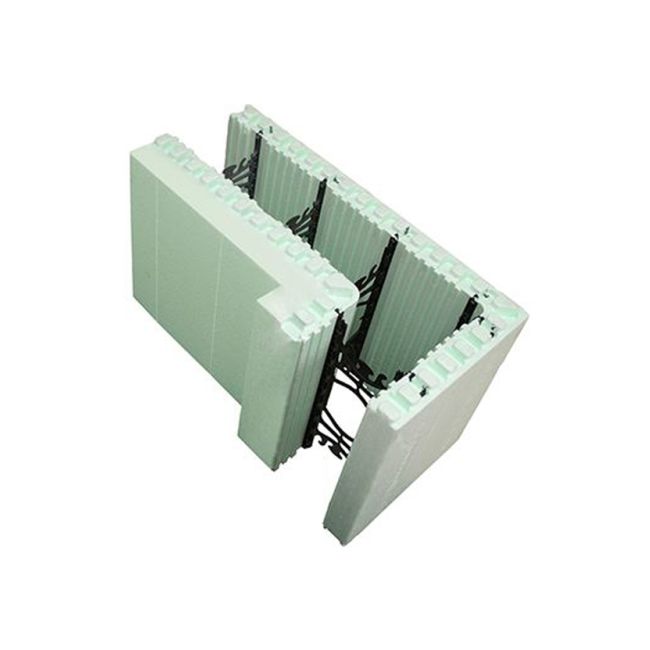

90 Degree Form Unit (Plus Series) - Inside (Short Side) - Price Per Block

90 Degree Form Units (Plus Series) are used to enhance the R-Value of a structure.

Packaged in bundles of 6 pieces @ 0.56 m² each piece. See attachments for dimension details and visit http://www.nudura.com/training/installation-videos for full installation details and videos.

Snap shot useful info

• Weight per package: 19.05 kg (906P1S), 19.96 kg (906P2S), 21.77 kg (906P4S), 23.13 kg (906P6S)
• Area per piece: 0.56 m²
• Dimensions per package: 2.85m x 0.48m x 0.48m (906P1S), 2.92m x 0.53m x 0.48m (906P2S), 3.23m x 0.61m x 0.48m (906P4S), 3.58m x 0.71m x 0.48m (906P6S)
• Pieces in a 40'HC: 647 (906P1S), 571 (906P2S), 454 (906P4S), 349 (906P6S)
• Packages in a 40'HC: 107 (906P1S), 95 (906P2S), 75 (906P4S), 58 (906P6S)

Volume (m³) of concrete required per piece. (Check with your engineer for the grade of concrete required for your project.)

• Core Size 100 mm: = 0.048 m³
• Core Size 150 mm: = 0.067 m³
• Core Size 200 mm: = 0.093 m³
• Core Size 250 mm: = 0.122 m³
• Core Size 300 mm: = 0.153 m³

R-Value increases with thickness of the Form Unit

• 1" (25mm) = R-Value - 28
• 2" (50mm) = R-Value - 32
• 4" (100mm) = R-Value - 40
• 6" (150mm) = R-Value - 48

Reinforcement required

• NUDURA have developed reinforcement tables based on European and North American code you can refer to these as guidance but always comply with your local code.
